Vodavi is proud to announce the availability of our newest telephone system, the STARPLUS STS. STS stands for Small Telephone System. This system is perfect for small businesses and is loaded with many features previously available only to larger enterprises. Best of all, this system is modestly priced, making it refreshingly affordable as well.

Hold the Phone…

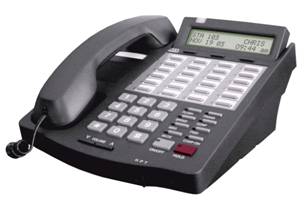

Rather than offering multiple phone models, we’ve packed all the features

you need in one handsome, easy-to-use speakerphone. The STS phone

has 24 flexible buttons that can be programmed to monitor stations in use,

enable one touch speed dial, or to enable system features such as Do Not

Disturb, All Call Page, and many more. The phone also has 3 interactive soft keys positioned directly below the 2 x 24 character display that enable quick access to common system features. The phone is CTI capable as well. The speakerphone enables convenient hands-free use and the volume control independently controls

both handset and speaker volume.


Refreshingly Flexible & Simple

Easy to Configure Install & Program. Name & number display Caller ID is standard. Optional In-Skin Voice Mail. PBX/Centrex Compatibility, Supports full or fractional T1. Phones are CTI adaptable, ADP – (additional Device Port on every phone for fax or modem connection), Standard 2.5 mm Headset Jack on every phone. Voice Mail does not reduce System Capacity.  UCD & LCR Capability, Music on hold interface, paging are also standard.


STARPLUS STS optional In-Skin Voice Mail Card

This in-skin solution makes voice mail a refreshingly affordable option for any small business. It plugs right into the phone system itself, eliminating the need for more expensive external equipement. This 8-port system has 64 mailboxes and 3 hours of message storage, expandable to 9 hours.


The optional STS On-Board Voice Mail System

Enhances Productivity With Key Features Such As:

Dial-by-Name Auto-Attendant – Allows callers to direct themselves to the appropriate person without the help of an operator. If callers know their extension they can dial it at any time and thus bypass the auto-attendant.

Menu Routing – Route callers more efficiently (Example, for Sales, press 1, for service, press 2, etc.) Up to 5 menus available.

RAN Announcements – Play messages to your callers while they are waiting to speak with someone

Fax Tone Detect – Automatically detects an incoming fax and forwards it to a designated fax machine.


Voice Mail User Productivity Features Include:

Message Wait Light – Light indicates new voice mail messages

Message Storage – Save a message for future reference

Message Forwarding – Direct messages to the proper people quickly and efficiently

Call Forwarding – Have incoming calls forwarded directly to your mailbox. Users can program this themselves without having to consult the system administrator

Pager Notification – Users can choose to be paged if there is a new message in the system (up to 18 digits)

Remote Access – Check your voice mail messages from any touch-tone phone

Live Call Screening Option – (Answering Machine Emulation) Listen to messages as they are being recorded and pick up the phone if you want to speak with the caller

Change Personal Greetings – Recorded name, personal greeting, and temporary greeting are controlled by the user

Date and Time Stamp – Find out when a message was left

Password Control – Change the password at any time

One Touch Record – Record important conversations for future reference


STS System Features


Account Codes - Unverified/Verified/Traveling COS        Alarm Key - Diagnostics Alert                          Alpha-Numeric Display

All Call Paging                                                           Automated Attendant                                  Analog Adapters

Answering Machine Emulation                                      Attendant override                                      Attendant Alert (911 feature)

Attendant Unavailable (Alternate Position)                     Attendant - Setting System Time                 Attendant Directory Programming

Attendant - Software Version Display                            Attendant - Speed Dial - System Storing       Attendant Administration

Attendant/Extension Console                                       Attendant Recall                                         Automatic Three Mode Operation

Automatic Hold                                                          Automatic Line Selection (Programmable)      Automatic Mode (Day/Night/Special)

Automatic Privacy                                                    BGM (1) channel - MOH                         Barge In

Battery Backup                                                        Busy Lamp Field                                   Call Announce - Privacy

Call Back                                                                Call Coverage                                       Call Duration Timer

Call Forward - All Calls                                             Call Forward - Busy                                Call Forward Busy/No Answer

Call Forward Extension Direct                                    Call Forward - Extension - External            Call Forward - Override

Call Forward - No Answer                                        Call Park (System/Personal/Station)            Call Pickup (Pickup/Group)

Caller ID Name & Number                                          Calling Station Tone Mode                        Caller ID Call Table (100-System)

Call Operator/Attendant (Programmable Code)             Caller ID Answered/Unanswered Call Review  Call Transfer

Calling Party Indication                                            Camp-On Extension                                 Centrex Compatibility

Class of Service - CO Line                                      Class of Service - Extension                        CO Ring Tones

CO Line Receive Assignment                                   CO Line Ring Assignment                          CO Line Type Assignment

CO Lines Offnet Forward – Incoming                       CO Line Group (Pooled Access)                   CO Alternate Route

CO Line Name Programming (7-character)                CO Line Assignment (Complete Flexibility)     CO Line Programming Copy

CO Line Queuing (CO Line Call Back)                      CO Line Ringing Mode (Day/Night/Special)      CO Line Signaling (Tone/Pulse)

CO Line Loop Supervision (Call Abandon)                Computer Telephony Integration (CTI)          CTI Adaptable

Conference (Establish/Exit/Re-enter/Terminate)      Database Programming via TU                      Database Programming via PC-DBA

Day/Night Special Mode                                      Dial Pad Confirmation Tone                          Disable Outgoing Co Access

DTMF Receivers (One per Analog Port)                  Dial By Name                                            DISA

DSS/BLF                                                          Distinctive Ringing (On CO/STA)                  Default Numbering Plan

Discriminating Ringing (Internal/External Call Specific)  Do Not Disturb Plan                               Dual Color LEDs

End-to-End Signaling                                           Executive/Secretary Screen                    Extension Groups (Paging, Pick Up)

Extension Programming Copy                                 Extension Swapping                               Extension User Name

External Music Source                                         Fax Detection with Automatic Transfer      Feature Code List

Flash                                                               Flexible Feature Button Inquiry                 Flexible System Numbering Plan

Flexible Extension Numbering Plan                         Flexible Feature Button Programming         Forced CO Call Forward

Forced Intercom Call Forward                               Forced Intercom Tone Ring                     Forced Release

Group Listening                                                 Headset Mode                                       Hold Abandon

Holding Call Answer/Select                                  Hold - Common (System)                        Hold - Exclusive

Hold Reminder                                                   Hot Key                                               Hour Mode Selection

Hot Line                                                           Hunt Groups via UCD-Linear                    I-Hold Indication

I-Use Indication                                                 Incoming CO Transfer                            Intercom Non Blocking

Intercom Buttons/Intercom Call/Keyset Mode          Interactive Soft keys                             Last Number Redial

Mailbox Buttons                                                 Meet me Page                                        Message Waiting

Music On Hold                                                   Mute                                                    Muted Ring

Name in Display                                                 Night Service Activate                             OHVO – Off Hook Voice Over

On Hook Dialing                                                 Off Hook Preference/Programming              One Touch Recording

Paging (Internal/External)                                    Paging (Allow & Deny)                            Pause Insertion

PC Database Administration                                  Personalized Messages                           PBX/Centrex on a Flex Button

PBX/Centrex Transfer                                          Power Supply – 110/220VAC Privacy        Privacy Release

Private Line                                                       Pulse to DTMF Conversion

Recall                                                              Reminder Tones                                     Remote Programming via PC-DBA

Repeat Redial                                                    Ringing Line Priority                                Saved Number Redial

Screened Transfer                                              SLT/Analog Device Support                    SLT Co Line Flash

SLT Hotline                                                      Speakerphone                                       Station ID Lock

Station Off Net Call Forwarding (via speed dial)       SMDR                                                 Station Renumbering

Speed Dial (20 per station)                                  Speed Dial (1000 per system)                 Storing Speed Numbers

T1 Capability                                                     Text Messaging                                   Toll Restriction

UCD (Available/Unavailable Mode)                          UCD (Display calls in queue)                   UCD Agent Log Off/On

UCD Overflow (Station Forward)                            Universal Day/Night Answer                    UCD Reroute Destination

UCD Voice Announce Group                                  User Name Programming                        Virtual Number

Voice Mail/Call forward to voice mail groups)           Voice Announce - Hands free Reply         Volume Controls

Warning Time                                                    Warning Tone
